Cummins Earth Moving HX35 Turbo 3536338 1995- Komatsu

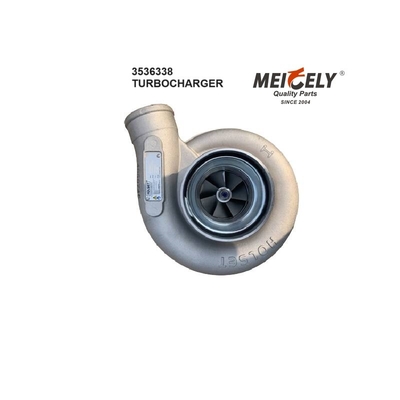

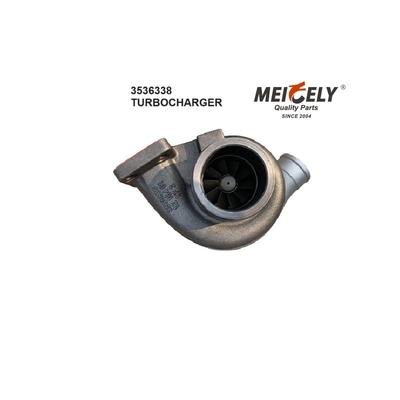

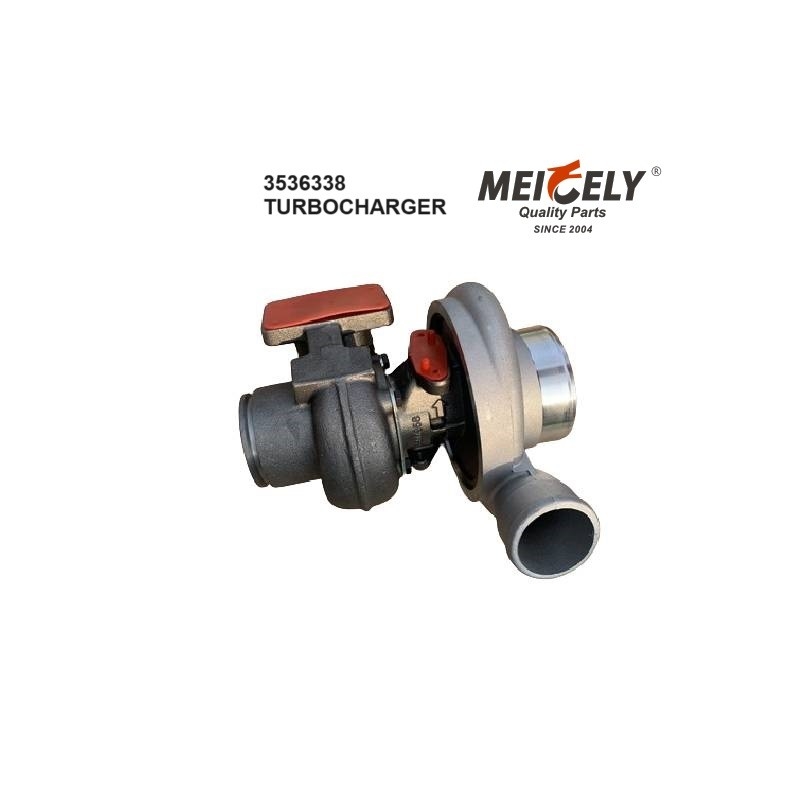

Large Image : Cummins Earth Moving HX35 Turbo 3536338 1995- Komatsu

Product Details:

Place of Origin:	China
Brand Name:	MEICELY
Model Number:	HX35

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Carton Packing
Delivery Time:	10-45 days
Payment Terms:	T/T, L/C
Supply Ability:	10000pcs/month

Contact Now

Cummins Earth Moving HX35 Turbo 3536338 1995- Komatsu

Description

OE Number:	3536338	Engine:	BT, 6BTA, S6D102, SA6D102
Type:	Turbocharger	Fuel:	Diesel
CHAR:	3537817 (302-00001, 3580902, 4027480, 4027950, 5451473)(1000020152)	Angle α (compressor Housing):	329°
Angle β (turbine Housing):	20°	Displacement:	5.9L, 5900 Ccm, 6 Cylinders
Bearing Housing:	4032032 (3532631, 4027872, 3539694, 3599943, 4027754, 4035136, 4036549, 4027443)(84.50 Mm)(Oil Cooled)	Warranty:	6 Months
CertifiExcavatore:	ISO9001

Cummins Earth Moving HX35 Turbo 3536338 1995- Komatsu

SpecifiExcavatorion:

SpecifiExcavatorion As Follows
SpecifiExcavatorion As Follows
OE Number	3536338
Fuel	Diesel
Engine Model	BT, 6BTA, S6D102, SA6D102
CHAR	3537817 (302-00001, 3580902, 4027480, 4027950, 5451473)(1000020152)
Angle α (compressor housing)	329°
Angle β (turbine housing)	20°
Displacement	5.9L
CertifiExcavatore	ISO9001
Warranty	6 Months

Description:

Part Number	3536338
Previous Part Number	3537020, 3536339, 3537019, 3537020, 3593201, 3593209, 3593211
OE number	3536339, 3537019, 3537020, 3593201, 3593209, 3593211, 6735818400, 6735818300, 6735-81-8300, 6735-81-8200, 6735-81-8400, 3802862.0
Description	Earth Moving Komatsu PC20-6E Crawler Excavator, WA100, PC200, 228UU
CHRA	3537817 (302-00001, 3580902, 4027480, 4027950, 5451473)(1000020152)
Turbo Model	HX35, HX35-M8264T/E14DD11
AppliExcavatorion	WA100-W150/200-PC200/228UU
Engine	6BT, 6BTA, S6D102, SA6D102
Displacement	5.9L, 5900 ccm, 6 Cylinders
Engine Manufacturer	Cummins, Komatsu
Fuel	Diesel
Angle α (compressor housing)	329°
Angle β (turbine housing)	20°
Bearing Housing	4032032 (3532631, 4027872, 3539694, 3599943, 4027754, 4035136, 4036549, 4027443)(84.50 mm)(Oil Cooled)(1900011016)
Turbine Wheel	3519336 (3595832)(Ind. 70.05 mm, Exd. 59.94 mm, Trm 10.99, 12 Blades)(1152301435, 1100030005)
Comp. Wheel	3599594 (3537168, 3599646, 4036126)(6735818031)(Ind. 53.97 mm, Exd. 82.04 mm, Trm 5.97, 8+8 Blades, Superback)(1153035402, 1200016158)
Back plate	3530923 (1154351300, 1800016009)
Heat shield Number	3519302 (3519304)(1152301340, 2030016031)
Repair Kit	3575169 (1153035750, 5000020021, 5000020029)
Turbine Housing	3537021
Compressor Cover	3535813
Gasket oil inlet	210023 (210023-0000, 147837, 210021, 215234, 55739, 3709737, 3500681, 3519762, 409266-0001, 409036-0000, 409026-0001, 52231586500)(1900000037)
Gasket (oil outlet)	210021 (148062, 311496, 3519807, 413671-0000, 409037-0000)(1900000027)

Other OE Number:

Other OE No. As Follows
OE Number	Other OE No.
3536338 turbocharger	3537020
3536338 turbocharger	3536339
3536338 turbocharger	3537019
3536338 turbocharger	3537020
