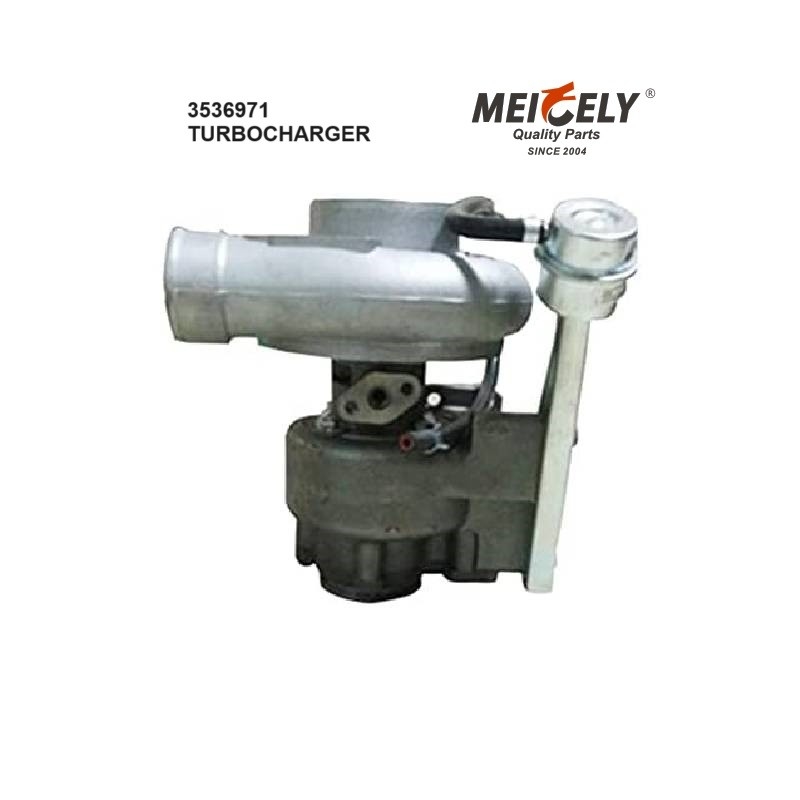

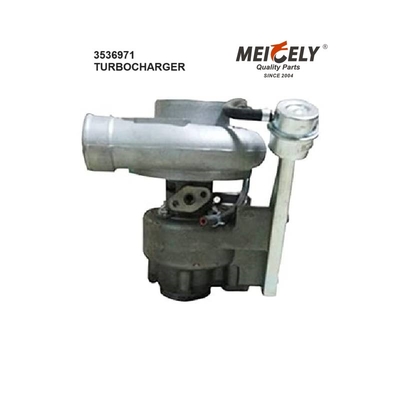

3536971 HX35W Turbo Industrial Off Highway Cummins 6BTA Diesel Engine

SpecifiExcavatorion:

Description:

Part Number: 3536971
Interchangeable Number: 3536972H
OEM Number: 3536972, 3536973, 3536974, 3536975, 3536976, 3802767, 500395274
Turbo Model: HX35W, HX35W-L8264T/E12PB11
Manufacturer: Meicely

Year: 1995-
Engine: 96 6BTA
Engine Manufacturer: Cummins
Fuel: Diesel

Angle α (Compressor Housing): 206/310/320/329/340°
Angle β (Turbine Housing): 5/20/165/180°
Actuator: 3593679
Bearing Housing: 4032032/4027443 (84.50 mm)
CHRA: 3537817
Compressor Cover: 3535813
Compressor Wheel: 3537168/3599594 (3537147, 3599638)(6735818031) (Ind. 53.88 mm, Exd. 83.03 mm, 8+8 Blades)(1152301400)
Gasket (Oil Inlet): 210023 (210023-0000, 147837, 210021, 215234, 55739, 3709737, 3500681, 3519762, 409266-0001, 409036-0000, 409026-0001, 52231586500)(1900000037)
Gasket (Oil Outlet): 210021 (148062, 311496, 3519807, 413671-0000, 409037-0000)(1900000027)
Heat Shield: 3519304 (3519302)(1152301340)
Repair Kit: 3575169 (1153035750)
Seal Plate: 3530923 (1154351300)
Turbine Housing: 4030380
Turbine Wheel: 3519336/3595832 (Ind. 70 mm, Exd. 60 mm, 11 Blades) (1152301435)

AppliExcavatorion:
1995- Industrial, Off Highway with Cummins 6BTA Engine
