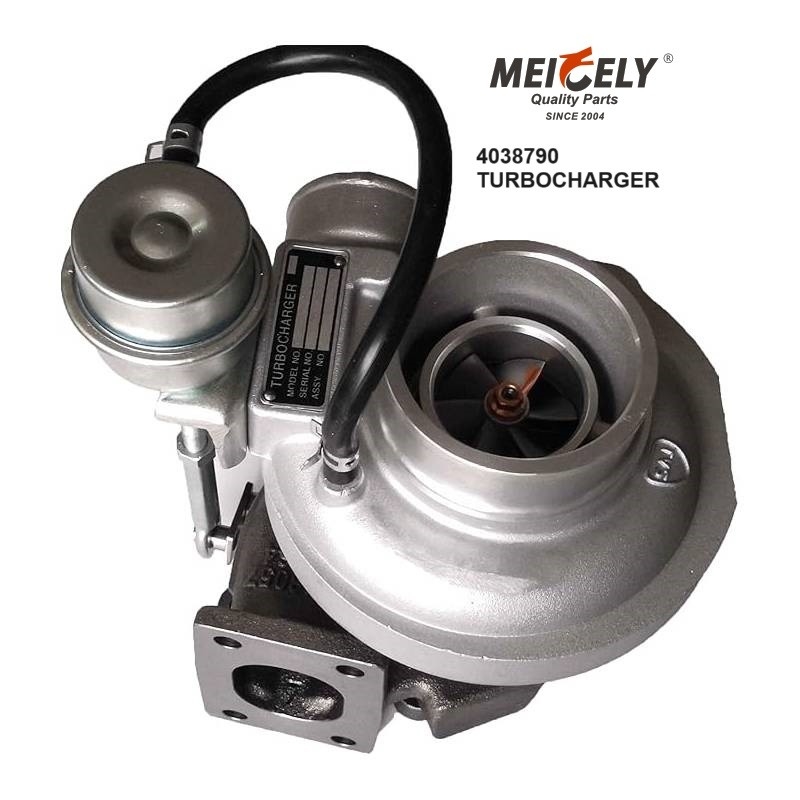

NEW Holset HX25W Turbocharger 4038790 Komatsu PC100 PC160 PC200 Excavator 4B 4039714

SpecifiExcavatorion:

Description:

Part Number: 4038790
Interchangeable Number: 3599355, 3599356, 4033351, 4033351H, 4038791
OEM Number: 4089714
Turbo Model: HX25W-TD04HL-11T-6, HX25W
Manufacturer: Meicely

Year: 2004-
Engine: 4B
Engine Manufacturer: Cummins
Displacement: 3.9L, 3900 ccm
Fuel: Diesel

Angle α (Compressor Housing): 155/285°
Angle β (Turbine Housing): 10/165°
Actuator: 4030795/3599951
Back Plate: 49135-00044 (1153025300)(S/Back)
Bearing Housing: 49189-26400 (1153025450)(Oil Cooled)
CHRA: 3539071 (1153025901)
Compressor Wheel: (Ind. 38.76 mm, Exd. 55.88 mm, 6+6 Blades, Super Back)(1153025400)
Gasket (Oil Outlet): 210243 (Gasket paper)
Gasket (Turbine Inlet): 210218 (Stainless Steel)
Gasket (Turbine Outlet): 210889 (Stainless Steel)
Heat Shield: 49183-19300 (11530253408)
Repair Kit: 1153025751
Turbine Wheel: 49189-30100 (Ind. 51.96 mm, Exd. 45.67 mm, 12 Blades)(1153025435)
Wastegate Settings (Lift Shaft): 1.75 mm
Wastegate Settings (Pressure): 0.5-1.04/0.3-1.27 bar

AppliExcavatorion:
2004- Komatsu PC100, PC160, PC200, PC128US Excavator, Various with Cummins 4B Engine
