Part Number: 466721-5007
Interchangeable Number: 466721-0007, 466721-5007S, 466721-0016, 466721-5016, 466721-5016S, 466721-0017, 466721-5017, 466721-5017S, 466721-0018, 466721-5018, 466721-5018S
Part Number: 65.09100-7038, 65091007038, 65.09100-7047, 65091007047, 65.09100-7048, 65091007048, 65.09100-7049, 65091007049, 65.09100-7132, 65091007132, 65.09100-7134, 65091007134, 65.09100-7135, 65091007135, 65.09100-7136, 65091007136

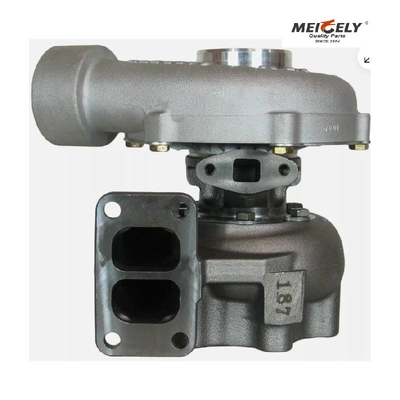

Turbo Model: T04E55
Manufacturer: Honeywell-Garrett
Year: 1995-
Engine: D1146T, D1146TI
Displacement: 8.1L
Fuel: Diesel
Power: 217 HP
Speed: 1800 RPM
Back Plate: 408045-0064 (408045-0030, 408045-0031, 408045-0038, 408045-0039, 408045-0061, 408045-0019)(ME078204)
Bearing Housing: 430027-0025 (186879, 186881, 312379, 430027-0022, 430027-0048)(1100030450)(Oil Cooled)
CHRA: 447450-0137 (447450-5137S)
Compressor Cover: 443194-0021
Compressor Wheel: 446618-0026 (Ind. 53 mm, Exd. 82 mm, Trim 42, 6+6 Blades)
Gasket (Oil Inlet): 210023 (210023-0000, 147837, 215234, 55739, 3709737, 3500681, 3519762, 409266-0001, 409036-0000, 409026-0001, 52231586500)(1900000037)
Gasket (Oil Outlet): 210021 (148062, 311496, 3519807, 413671-0000, 409037-0000)(1900000027)
Gasket (Turbine Inlet): 409039-0000 (Inox Steel)(409039-0001, 210019, 2405022)(1900000006)
Gasket (Turbine Outlet): 210274 (Stainless Steel)
Heat Shield: 409299-0000 (409299-0001)(311943, 7N0012, 3524773B, ME078199)
Repair Kit: 468265-0000 (1100040760)
Turbine Housing A/R: 1.00
Turbine Housing: 441619-0009
Turbine Wheel: 446905-0002 (407276-0006, 407276-0019, 410188-0003, 410188-0006, 410188-0037, 446905-0005, 446905-0007, 446905-0010, 451309-0003, 451309-0004)(Ind. 64 mm, Exd. 73 mm, Trim 77, 11 Blades)
AppliExcavatorion:
1995- Daewoo, Doosan Forklift with D1146TI Engine
1995- Daewoo, Doosan Truck with D1146TI Engine
Daewoo, Doosan Solar 250LC-V Excavator with D1146T, D1146TI Engin
