Product Details:
|
| OE Number: | 248-5246 | Engine Model: | C9 |
|---|---|---|---|
| Type: | Turbocharger | KW: | 206/280 |
| RPM: | 1800 | Displacement: | 9.0L, 9000 Ccm |
| Turbine Wheel: | (Ind. 76. Mm, Exd. 68. Mm, Trm 11.7 | Compressor Wheell: | (Ind. 57.3 Mm, Exd. 83. Mm, Trm 9.9 |
| Back Plate: | 1800016034 | Repair Kit: | 5000030033B |
| Gasket (turbine Inlet): | 409039-0000 (312617, 2405022, 7C7431) | Weight: | 19kgs |
| Warranty: | 6 Months | CertifiExcavatore: | ISO9001 |
| Highlight: | S310C080 Turbocharger,1980-13 Excavator Earth Moving Turbocharger,174755 Turbocharger |
||

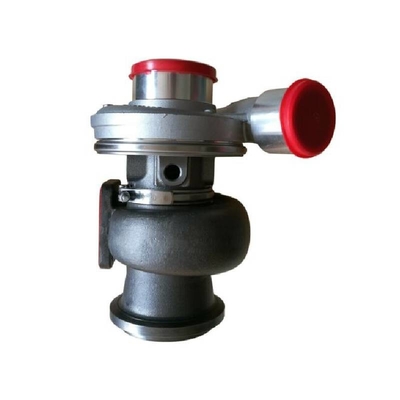

Turbocharger 248-5246 for 1980-13 Excavator Earth Moving S310C080 Turbo 174755
SpecifiExcavatorion:
| SpecifiExcavatorion As Follows | |
| OE Number | 248-5246 |
| Material | Steel |
| Engine Model | C9 |
| Weight | 19kgs |
| KW | 206/280 |
| RPM | 1800 |
| Displacement | 9.0L, 9000 ccm |
| Compressor Wheel | (Ind. 57.3 mm, Exd. 83. mm, Trm 9.9 |
| Turbine Wheel | (Ind. 76. mm, Exd. 68. mm, Trm 11.7 |
| Back Plate | 1800016034 |
| Repair Kit | 5000030033B |
| Gasket (turbine inlet) | 409039-0000 (312617, 2405022, 7C7431) |
| ASIN | N/A |
| CertifiExcavatore | ISO9001 |
| Warranty | 6 Months |
Description:
Turbocharger 248-5246 for 1980-13 Excavator Earth Moving S310C080 Turbo 174755
Turbo S300G071 Turbocharger 248-5246 10R2355 For Excavator 3126 3126B 3126E C7 Diesel Engine
weiwie Part Number: 248-5246 || AppliExcavatorion: For Excavator 3126 3126B 3126E C7 Diesel Engine
Excavator® Reman Part Number: 10R-2355 Length (in): 13.6 Width (in): 11.6 Height (in): 17 Weight (lbs): 46.5 Length (mm): 345.4 Width (mm): 294.6 Height (mm)
| Year | 1980-13 |
| Description | Earth Moving Excavator Machine 300C, 330C |
| CHRA | 174129 (178189, 178397)(2355507, 20R-4999, 20R4999, 196-6097, 1966097, 478189, 478397)(1000070074C) |
| Turbo Model | S310C080, S310C |
| Prefix | 101,102, 103, 104, 202, 301,302, 812, 813, 814, 99Z, MGC, 7YC, AKN, ALA, ALM, 2ZJ, 2ZJ, CEZ, GKX, HAA, JAB, JCD, JNK, KDD, MCA, MKM, MSD, MSL, RBH, B1K, B2L, B3M, B4N, BTM, CAP, CGZ, CYA, D3C, DKY, GAG |
| Engine Model | C9 |
| Engine Manufacturer | Excavator |
| KW | 206/280 |
| RPM | 1800 |
| Displacement | 9.0L, 9000 ccm |
| Fuel | Diesel |
| Machine Engine | C-9, C9 |
| Forest Products | 2290, 2390, 2391, 2491, 2590, 511, 521, 522, 532, 541, 551, 552 |
| Industrial Engine | C9 |
| Oem Solutions | 330C, 330D, 330D L, 336D, 336D L |
| Petroleum Products | CX31-C9I, TH31-C9I, CX31-P600, TH31-E61, 81200001-UP, CEZ00001-UP |
| Truck Engine | C7 |
| S/N | THX795-UP, 4ZF12455-UP, 4ZF12430-UP, 4ZF1-UP, 7AZ1-UP, 4ZF12455-26108, 7AZ1-UP, 4ZF12430-UP, 4ZF12455-UP, 7AZ103-UP, 4ZF12455-99999, 7AZ1-UP, MSD00001-UP, CAP00001-UP, GKX00001-UP, JAB00001-UP, DKY00001-UP, CYA00001-UP, D3C00001-UP, B4N00001-UP, B1K00001-UP, MKM00001-UP, JCD00001-UP, B3M00001-UP, MSL00001-UP, BTM00001-UP |
| Bearing Housing | (Water Cooled)(1900011439) |
| Turbine Wheel | (Ind. 76. mm, Exd. 68. mm, Trm 11.7 |
| Comp. Wheel | (Ind. 57.3 mm, Exd. 83. mm, Trm 9.9 |
| Back plate | (1800016034) |
| Repair Kit | (5000030033B) |
| Gasket (turbine inlet) | 409039-0000 (312617, 2405022, 7C7431) |
| NOTE | Water-Cooled Bearing Housing |
| Other OE No. As Follows | |
| OE Number | Other OE No. |
| 248-5246 turbocharger | 174755 |
| 248-5246 turbocharger | 178484 |
| 248-5246 turbocharger | 10R2355 |
| 248-5246 turbocharger | 474755 |
