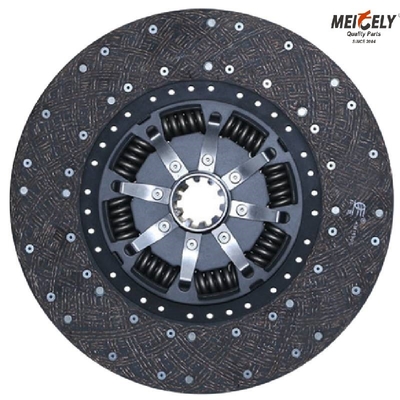

Heavy Duty Truck Clutch Disc 1862193105 Diameter 400mm

I'm Online Chat Now

Heavy Duty Truck Clutch Disc 1862193105 Diameter 400mm

Heavy Duty Truck Clutch Disc 1862193105 Diameter 400mm
Heavy Duty Truck Clutch Disc 1862193105 Diameter 400mm

Large Image :  Heavy Duty Truck Clutch Disc 1862193105 Diameter 400mm

Product Details:
Place of Origin: China
Brand Name: Meicely
Certification: ISO/TS16949
Model Number: N/A
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Carton Packing
Delivery Time: 10-45 days
Payment Terms: T/T, L/C
Supply Ability: 10000pcs/month

Heavy Duty Truck Clutch Disc 1862193105 Diameter 400mm

Description
OE No.: 1862193105 Type: Clutch Disc
Material: Iron & Steel Diameter: 400mm
Weight: 7kgs Stroke: 4
Voltage: 4V Hub Profile: 51mm
Specification: 400*250*10*51mm Working Mode: Power Combining
Certificate: ISO/TS16949:2002, CE Warranty: 12 Months
High Light:

1862193105 Truck Clutch Disc

,

400mm Diameter Truck Clutch Disc



Heavy Duty Truck Clutch Disc 1862193105 Diameter 400mm



Specification



Specification As Follows
OE No. 1862193105
Category Clutch Disc
Material Iron & Steel
Diameter 400mm
Weight 7kgs
Specification 400*250*10*51mm
Voltage 4V
Stroke 4
Hub Profile 51mm
Certificate ISO/TS16949
Warranty 12 Months





Description





From material selection to factory inspection, the most complete international standards are adopted. And the products use OEM standard materials. Especially the core component of the disk hub is made of 40Cr and undergoes quenching and tempering to make Rockwell hardness reach HRC28-32. The steel sheet is made of 65Mn and has been quenched to make the Rockwell hardness reach HRC38-42. So it is not easy to deform. With the use of SPHC carbonitriding, the damping disc is ductile enough to withstand large tonnage stamping while also achieving Vickers hardness HV600-700 The spring is made of 55CrSIA material, which ensures that it does not break and the shorting amount is less than 0.5mm after working for more than 3 million times The face sheet is made of asbestos-free material, which has the characteristics of high temperature resistance, and the friction coefficient is 0.27-0.40. It can guarantee a service life of at least one year.



Supplier and Manufacturer of Clutch Plate, 1862193105. Suitable for Mercedes OM 402, 442, 440. Full range of Spare Parts for Mercedes.





Other OE No.



Other OE No. As Follows
OE Number Other OE No.
For Mercedes Benz 1862193105

0082501303

For Mercedes Benz 1862193105 1878 004 394
For Mercedes Benz 1862193105 1878 004 109
For Mercedes Benz 1862193105 1878 004 109
