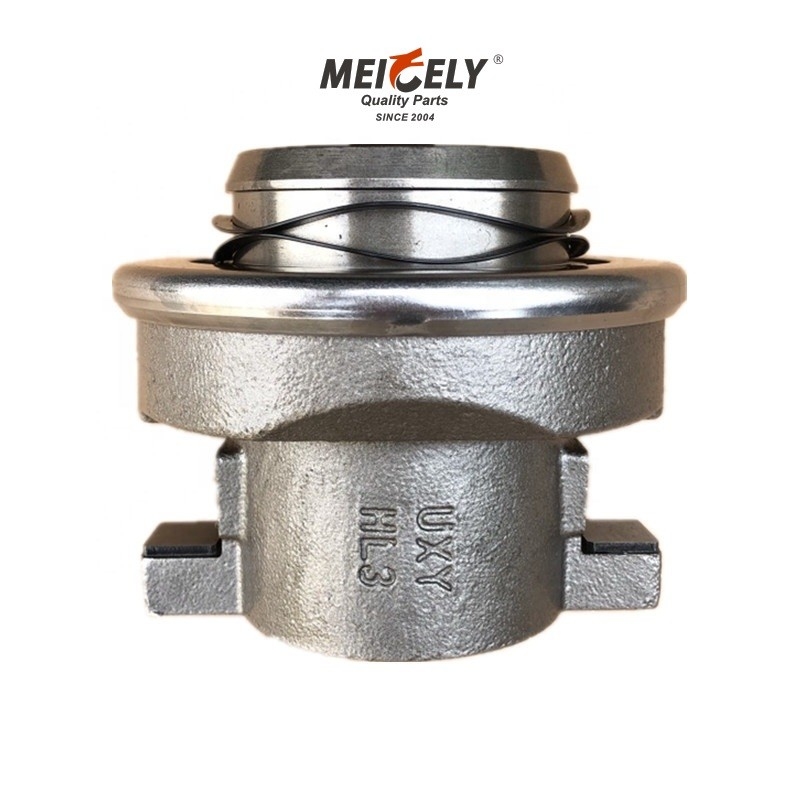

Sinotruck Howo Clutch Release Bearing WG9925160613

I'm Online Chat Now

Sinotruck Howo Clutch Release Bearing WG9925160613

Sinotruck Howo Clutch Release Bearing WG9925160613
Sinotruck Howo Clutch Release Bearing WG9925160613

Large Image :  Sinotruck Howo Clutch Release Bearing WG9925160613

Product Details:
Place of Origin: China
Brand Name: Meicely
Certification: ISO9001
Model Number: WG9925160613
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Carton Packing
Delivery Time: 10-45 days
Payment Terms: T/T, L/C
Supply Ability: 10000pcs/month

Sinotruck Howo Clutch Release Bearing WG9925160613

Description
OE No.: WG9925160613 Category: Clutch Release Bearing
Material: Steel Outer Dimension: 120-190mm
Weight: N/A Outer Diameter: N/A
Inner Diameter: N/A Warranty: 12 Months
High Light:

Sinotruck Howo Clutch Release Bearing

,

WG9925160613 Clutch Release Bearing



SINOTRUCK HOWO Clutch Release Bearing WG9925160613



Specification



Specification As Follows
OE No. WG9925160613
Category Clutch Release Bearing
Material Steel
Length N/A
Weight N/A
Parameter N/A
Stroke N/A
Normal Width N/A
Outer Diameter N/A
Inner Diameter N/A
Certificate ISO 9001
Warranty 12 Months





Description



Clutch release bearings are used in the part that transfers or shuts off the driving force.
When the driving force is shut off, the clutch release bearing is affected by a strong force from the high-speed rotating diaphragm spring, and starts to rotate suddenly. If there is a significant gap between the rotation centers of the diaphragm spring and the clutch release bearing, the contact surfaces are likely to generate heat and wear, and this greatly impacts the clutch function. Self-aligning clutch release bearings in particular can prevent this abnormal heat generation and wear.



If there is a significant gap between the rotation centers of the diaphragm spring and the clutch release bearing, self-aligning clutch release bearings prevent abnormal heat and wear. The centering mechanism between the sleeve and bearing absorbs the gap in the rotation center of the diaphragm spring at the start of the clutch release bearing's rotation, and after that, the rotation centers of both of them are aligned to suppress abnormal heat generation and wear on the contact surfaces.



Clutch release bearings that use steel plate presses for their bearing rings decrease the overall vehicle weight and contribute to lower fuel consumption.


Other OE No.

WG9921161201 WG9921161202 WG9925160613 LG9704720022
WG9925810001 AZ1034121020 LG1617231002 LG1617231004
LG9716540058 LG9716540059 LG9716560049 LG9716560072
V0112-030100-assy WG9761450119 811W62645-6052 WG9925810002
LG9704130007 LG9704190535 LG9704551300 LG9704552350
WG1034121033 WG9725545306
