Product Details:
|
| OE No.: | 3151 000 157 | Category: | Clutch Release Bearing |
|---|---|---|---|
| Material: | Iron | Length: | 92.5mm |
| Weight: | 2.827kgs | Parameter: | KZIZ-5 |
| ASIN: | B00DQGCS78 | Stent Diameter: | 127.9mm |
| Inner Diameter: | 60.4mm | Max Length: | 107mm |
| Warranty: | 12 Months | HS Code: | 8482102000 |
| High Light: | Sachs Clutch Release Bearing,92.5mm Length Clutch Release Bearing,3151 000 157 Clutch Release Bearing |
||

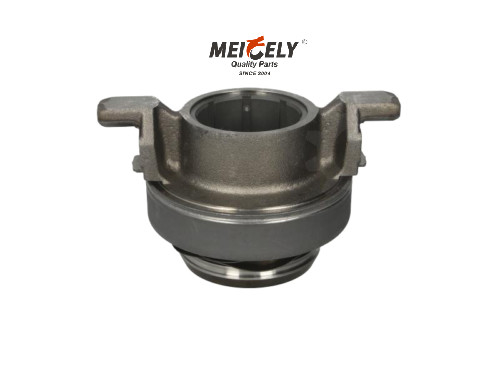

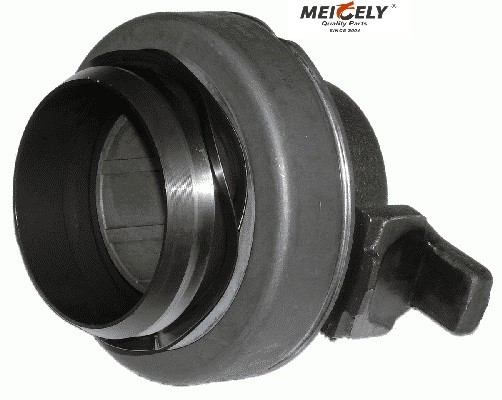

Sachs Clutch Release Bearing 3151 000 157
Specification
| Specification As Follows | |
| OE No. | 3151 000 157 |
| Category | Clutch Release Bearing |
| Material | Iron |
| Length | 92.5mm |
| Weight | 2.827kgs |
| Parameter | KZIZ-5 |
| Stroke | 4 Stroke |
| Normal Width | 120mm |
| Stent Diameter | 127.9mm |
| Inner Diameter | 60.4mm |
| ASIN | B00DQGCS78 |
| HS Code | 8482102000 |
| Certificate | ISO 9001 |
| Warranty | 12 Months |
Description
Clutch release bearings are used in the part that transfers or shuts off the driving force.
When the driving force is shut off, the clutch release bearing is affected by a strong force from the high-speed rotating diaphragm spring, and starts to rotate suddenly. If there is a significant gap between the rotation centers of the diaphragm spring and the clutch release bearing, the contact surfaces are likely to generate heat and wear, and this greatly impacts the clutch function. Self-aligning clutch release bearings in particular can prevent this abnormal heat generation and wear.
If there is a significant gap between the rotation centers of the diaphragm spring and the clutch release bearing, self-aligning clutch release bearings prevent abnormal heat and wear. The centering mechanism between the sleeve and bearing absorbs the gap in the rotation center of the diaphragm spring at the start of the clutch release bearing's rotation, and after that, the rotation centers of both of them are aligned to suppress abnormal heat generation and wear on the contact surfaces.
Clutch release bearings that use steel plate presses for their bearing rings decrease the overall vehicle weight and contribute to lower fuel consumption.
| Item | OEM manufacturer auto clutch release bearing 3151 000 157 | ||
| Parameter |
|
||
| ABS Sensor | Non Integral | Number of Splines | |
| Package | 1,barreled package+outer carton+pallets 2,plastic bag+single box+outer carton+pallets 3,tube package+middle box+outer carton+pallets 4, According to your's requirement |
||
| Quality Control | We have a complete process for production and quality assurance to make sure our products can meet your requirement. 1.Assembly 2.Windage test 3.Cleaning 4.Rotary test 5.Greasing and gland 6.Noise inspection 7.Appearance inspection 8.Rust prevention |
||
| Other OE No. As Follows | |
| OE Number | Other OE No. |
| 3151 000 157 Clutch Release Bearing | 1664358 |
| 3151 000 157 Clutch Release Bearing | 3151273531 |
