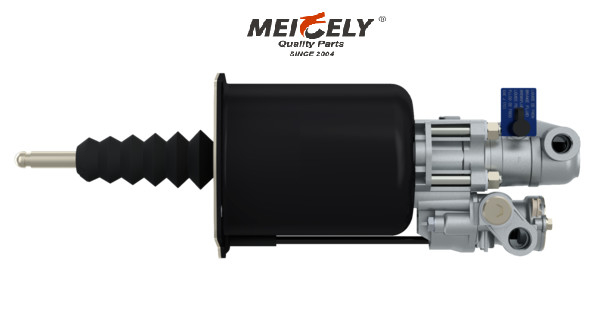

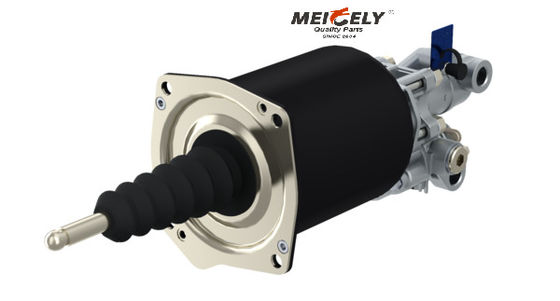

Wabco Clutch Booster Servo Truck Clutch Parts 9700511570

Wabco Clutch Booster Servo Truck Clutch Parts 9700511570
Wabco Clutch Booster Servo Truck Clutch Parts 9700511570 Wabco Clutch Booster Servo Truck Clutch Parts 9700511570

Large Image :  Wabco Clutch Booster Servo Truck Clutch Parts 9700511570

Product Details:
Place of Origin: China
Brand Name: Meicely
Model Number: 9700511570
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Carton Packing
Delivery Time: 10-45 days
Payment Terms: T/T, L/C
Supply Ability: 10000pcs/month
Contact Now

Wabco Clutch Booster Servo Truck Clutch Parts 9700511570

Description
OE No.: 9700511570 Excavatoregory: Clutch Booster Servo
Material: Based On The Sample Size: 399mm X 126mm X 129mm
Stroke: 85.00mm Port Thread 1-4: M14X1.5
Weight: 3.402kgs Mounting: 4x Ø 9.0 Mm
Distance Between Holes: 130.00mm Temperature Range: -40°C To +80°C
Highlight:

9700511570 Truck Clutch Parts

,

Wabco Truck Clutch Parts



Wabco Clutch Booster Servo Part Number 9700511570



SpecifiExcavatorion



SpecifiExcavatorion As Follows
OE No. 9700511570
Excavatoregory Clutch Booster Servo
Calculated Volume (dm³) 6.485
Size 399mm x 126mm x 129mm
Stroke 85.00mm
Port Thread 1-4 M14X1.5
Weight 3.402kgs
Mounting 4x Ø 9.0 mm
Distance Between Holes 130.00mm
Temperature Range -40°C to +80°C





Description

  • Brand
    WABCO Original
  • Part type
    Premium original quality
  • Technical SpecifiExcavatorion
    OE specifiExcavatorion
  • Product Excavatoregory
    Device
  • Comments
    MAN
  • Distance between holes
    130.0 mm
  • Length
    400 mm
  • Max. operating pressure
    10.0 bar
  • Mounting
    4x Ø 9.0 mm
  • Oil inlet
    Brake fluid SAE J 1703
  • Port Thread 1-4
    M14 x 1.5 ( K )
  • Port Thread 32
    Ø 8.0 mm
  • Port thread 11
    M16 x 1.5
  • Port thread 31
    Flap Exhaust
  • Push-rod thread
    Ball Ø 12.0 mm
  • Stroke
    85.0 mm
  • Temperature range
    -40°C to +80°C
  • Calculated Volume (dm³)
    6.485
  • GTIN
    7895851040250
  • Size (mm x mm x mm)
    399 x 126 x 129
  • Weight (kg)
    3.402





Other OE No.



  • DAF
    1518251
  • DAF
    1518248
  • ERF
    1197265
  • FAUN
    99707308039
  • MAN
    81307256053
  • MAN
    81307256054
  • MAN
    81307256055
  • MAN
    81307259054
  • MAN
    1197265
  • MAN
    81307256031
  • MAN
    81307256032
  • MAN
    81307256063
  • NEOPLAN
    81307256054
  • VAN HOOL
    10772982



Tag:

Truck Clutch Parts,

Use for rvi Truck Clutch Disc,

Use for rvi Clutch Booster Assembly
