Product Details:
|
| OE No.: | 1878 003 729 | Category: | Clutch Disc |
|---|---|---|---|
| Material: | Steel | Diameter: | 430mm |
| Hub Profile: | 46 X 50-24N | Number Of Teeth: | N/A |
| Parameter: | 430WGTZ | Product Dimension: | N/A |
| Weight: | 9kgs | ||
| High Light: | VOL-VO Truck Clutch Parts,1878 003 729 Truck Clutch Parts,430mm Diameter Truck Clutch Disc |
||

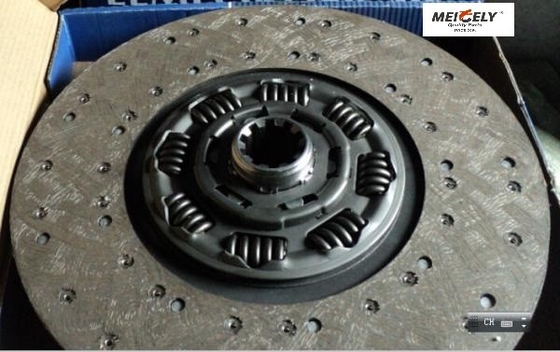

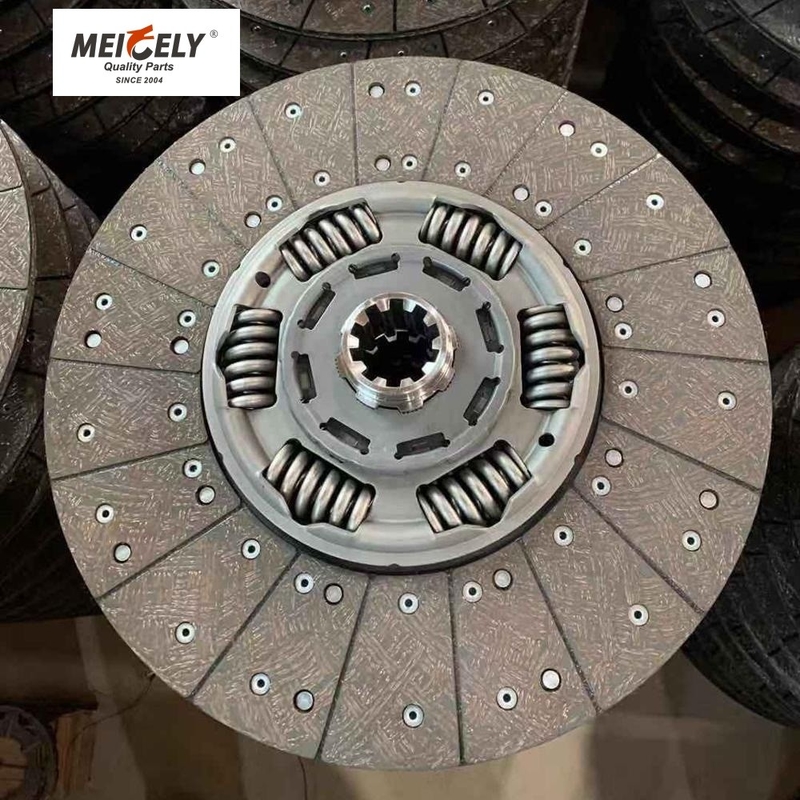

430 VOL-VO Clutch Disc 1878 003 729
Specification
| Specification As Follows | |
| OE No. | 1878 003 729 |
| Category | Clutch Disc |
| Material | Steel |
| Diameter | 430mm |
| Hub Profile | 46 X 50-24N |
| Weight | 9kgs |
| Product Dimension | N/A |
| Parameter | 430WGTZ |
Description
From material selection to factory inspection, the most complete international standards are adopted. And the products use OEM standard materials. Especially the core component of the disk hub is made of 40Cr and undergoes quenching and tempering to make Rockwell hardness reach HRC28-32. The steel sheet is made of 65Mn and has been quenched to make the Rockwell hardness reach HRC38-42. So it is not easy to deform. With the use of SPHC carbonitriding, the damping disc is ductile enough to withstand large tonnage stamping while also achieving Vickers hardness HV600-700 The spring is made of 55CrSIA material, which ensures that it does not break and the shorting amount is less than 0.5mm after working for more than 3 million times The face sheet is made of asbestos-free material, which has the characteristics of high temperature resistance, and the friction coefficient is 0.27-0.40. It can guarantee a service life of at least one year.
Equivalent Part Numbers:
VOL-VO 85000244; VOL-VO 20526951; VOL-VO 20366591; HAVAM AP4360; SACHS 5583; SACHS 5583 03; SACHS 42 1878 004 962; SACHS 42 1878 000 547; SACHS 86 1878 000 300; SACHS 42 1878 062 502; SACHS 42 1878 000 300
Other OE No.
| Other OE No. As Follows | |
| Sachs Truck Model | Other OE No. |
| Clutch Disc 1878 003 729 | N/A |
