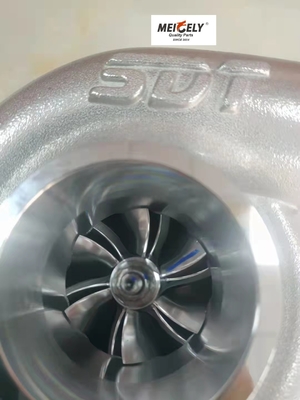

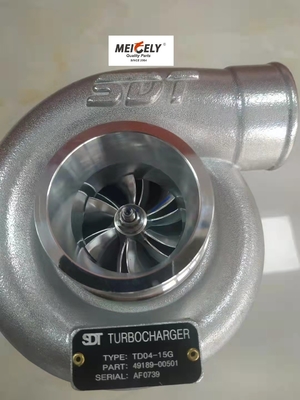

Metal Diesel Engine Turbocharger 49189 00501 AF0739 TD04-15G

I'm Online Chat Now

Metal Diesel Engine Turbocharger 49189 00501 AF0739 TD04-15G

Metal Diesel Engine Turbocharger 49189 00501 AF0739 TD04-15G
Metal Diesel Engine Turbocharger 49189 00501 AF0739 TD04-15G Metal Diesel Engine Turbocharger 49189 00501 AF0739 TD04-15G

Large Image :  Metal Diesel Engine Turbocharger 49189 00501 AF0739 TD04-15G

Product Details:
Place of Origin: China
Brand Name: MEICELY
Certification: ISO9001
Model Number: AF0739
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Carton Packing
Delivery Time: 10-45 days
Payment Terms: T/T, L/C
Supply Ability: 50000pcs/month

Metal Diesel Engine Turbocharger 49189 00501 AF0739 TD04-15G

Description
OE Number: 49189 00501 Type: TD04-15G
Material: Metal + Steel Width: N/A
Depth: N/A Height: N/A
Weight: N/A Serial: AF0739
Certificate: TS16949 Warranty: 6 Months
High Light:

49189 00501 Diesel Engine Turbocharger

,

AF0739 Diesel Engine Turbocharger

,

TD04-15G Diesel Engine Turbocharger



Diesel Engine Turbocharger 49189 00501, Serial Number AF0739, Type TD04-15G



Specification:



Specification As Follows
OE Number 49189 00501
Engine Type TD04-15G
Material Metal + Steel
Width N/A
Depth N/A
Height N/A
Weight N/A
Serial AF0739
Certificate ISO9001
Warranty 6 Months





Description:



Part Number 49189-00501
Previous Version 4918900501
OE number 4918900501, 51-8122, 518122, 8943675161, 8943675161A, 8-94367-516-1
Description Earth Moving ISUZU, Sk120-3, SK120, Hitachi EX120, Bobelco Sk120-3
CHRA 49189-08100 (4918908100)(1000050013) $295.00 NEW IN STOCK, MADE IN USA
Turbo Model TDO4HL-15G/8.5
Engine SK120-5, 4BD1T, 4BD1
Displacement 4.3L, 4300 ccm
Engine Manufacturer ISUZU
Model EX120-2/3
Fuel Diesel
Bearing Housing 49189-26400 (49189-20110)(Oil Cooled)(1900011184, 503050001) $62.00 NEW IN STOCK
Turbine Wheel 49189-30100 (Ind. 52. mm, Exd. 45.6 mm, 12 Blades)(1401404438, 1100030028, 501050002) $89.00 NEW IN STOCK
Compressor Wheel 49177-43400 (49189-40200)(Ind. 41.29 mm, Exd. 55.69 mm, 6+6 Blades, Superback)(1401404415, 1200030030) $66.00 NEW IN STOCK
Back plate 49135-00044 (49135-15405, 49173-22500)(F/Back)(1401404300, 1800016030) $19.96 NEW IN STOCK
Heat Shield 49183-19300 (1401404340, 2030-016-085, 506040003) $14.64 NEW IN STOCK
Repair Kit 49189-84000 (49177-80400)(1401404753, 5000050004, 509040002) $98.00 NEW IN STOCK
Turbine Housing 49189-15610
Compressor Cover 49189-55710
Turbine Housing AR 8.5
Gasket (oil outlet) 210317 (5I7689)(Paper)(1900000042) $4.41
Gasket (turbine inlet) 5I7933 $18.67
Gasket (Comp. Outlet) 2344818 $16.31
Manufacturer Mitsubishi



Applications

ISUZU, Hitachi, Kobelco Earth Moving EX120-2/3 with 4BD1-T Engine

Core Charge
There is a $200.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty
This part comes with ONE YEAR unlimited mileage warranty.



Other OE Number:

Other OE No. As Follows
OE Number Other OE No.
49189 00501 51-8122
49189 00501 8943675161
49189 00501 8943675161A
49189 00501 8-94367-516-1
