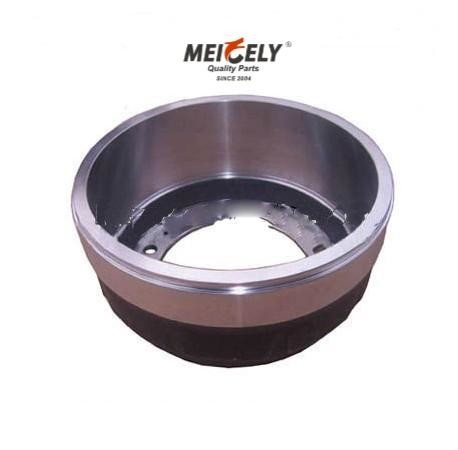

Black Use for rvi Truck Parts Brake Drum 5000737459 420mmX210mm

I'm Online Chat Now

Black Use for rvi Truck Parts Brake Drum 5000737459 420mmX210mm

Black Use for rvi Truck Parts Brake Drum 5000737459 420mmX210mm
Black Use for rvi Truck Parts Brake Drum 5000737459 420mmX210mm

Large Image :  Black Use for rvi Truck Parts Brake Drum 5000737459 420mmX210mm

Product Details:
Place of Origin: China
Brand Name: Meicely
Certification: ISO/TS16949
Model Number: 5000737459
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Carton Packing
Delivery Time: 10-45 days
Payment Terms: T/T, L/C
Supply Ability: 10000pcs/month

Black Use for rvi Truck Parts Brake Drum 5000737459 420mmX210mm

Description
OE No.: 5000737459 Category: Brake Drum
Material: Iron Brake Size: 420mmX210mm
Diameter: 420mm Brake Surface: 210mm
Height: 259.5mm Bolt Hole Circle: 335mm
Hub Bore: 290mm No. Holes: 10
Bore Diameter: 23mm Weight: 49.06kg
High Light:

420mmX210mm Use for rvi Truck Parts

,

Brake Drum Use for rvi Truck Parts

,

5000737459



Use for rvi Truck Brake Drum 5000737459



Specification



Specification As Follows
OE No. 5000737459
Material Iron
Category Brake Drum
Brake Size 420mm X 210mm
Diameter 420mm
Brake Surface 210mm
Height
Bolt Hole Circle 335mm
Hub Bore 290mm
No. Holes 10
Bore Diameter 23mm
Weight 49.06kg



Description



1.Metertrial:gray iron G3000/HT250/GG25=heavy truck brake drum
2.Weight:12kg-85kg
3.Chermical composition:
C:3.0-3.3% Si:1.6-1.9% Mn:0.7-0.9%
P:<0.12% S<0.12%
4.Mechanics performance:
Main body degree of hardness:163-255HBS
Testing rod tensile strength:>=220mpa
5.Design:As per the customers sample or Drawings
6.Packing:Wood pallet&Waterproof membrane.

Advantage in machining, casting.
Casting: Automatic production line including sand mixing, molding and pouring.
Machining: CNC machining center.
Inspection: Advance test equipment including CMM, tensile strength testing machine, hardness tester, spectrometer, parallel tester, etc.
Every detail contributes to our products of consistent quality and excellent performance



Other OE No.



Other OE No. As Follows
Truck Model Other OE No.
5000737459 Brake Drum N/A
5000737459 Brake Drum N/A
