Product Details:
|
OE No.: | 5000737342 | Category: | Brake Drum |
---|---|---|---|
Material: | Grey Iron | Brake Size: | 414mm X 150mm |
Diameter: | 414mm | Brake Surface: | 164mm |
Height: | 204mm | Pitch Circle: | 335mm |
Hub Bore: | 280.8mm | No. Holes: | 10 |
Bore Diameter: | 25mm | Weight: | 41kg |
High Light: | Brake Drum Use for rvi Truck Parts,41kg Use for rvi Truck Parts,5000737342 |

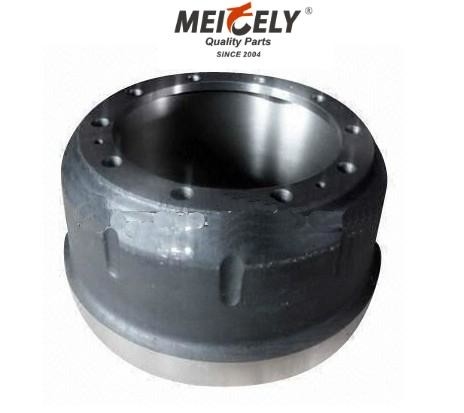

Use for rvi Truck Brake Drum 5000737342
Specification
Specification As Follows | |
OE No. | 5000737342 |
Material | Grey Iron |
Category | Brake Drum |
Brake Size | 414mm x 150mm |
Diameter | 414mm x 150mm |
Brake Surface | 164mm |
Height | 204mm |
Pitch Circle | 335mm |
Hub Bore | 280.8mm |
No. Holes | 10 |
Bore Diameter | 25mm |
Weight | 41kg |
Description
Production Description:
OEM Number: 500737342
Diameter:414mm
Overall Height:204mm
Brake Surface Depth:164mm
Hub Bore Diameter:280.8mm
Pitch Circle Diameter:335mm
No.of Holes/ Bore Diameter: 10/25mm
Weight: 41kg
Technical Specifications
Material: High grade grey cast iron is specified in accordance with HT 250 grade.
Chemical Composition: Carbon: 3.0-3.5%
Silicon: 1.4-2.0%
Manganese:: 0.6-1.0
Tensile strength Rm, 250MPa
Dimension Accuracy: Advanced Testing Machine, Spectrum Analyzer, Dynamic Balance Testing Machine ensures dimension accuracy of machined surface, hole and threads with the tolerance specified by the leading vehicle manufacturer.
Advantages:
1. Rigorous quality controls to ensure product integrity.
2. Low initial cost ensure competitive price.
3. Machined surface, holes, threads and brake path conform to the micron value in the original specifications.
3.We are the specialized manufacturer of brake drums and wheel hub for medium and heavy duty trucks and trailer.
4. We accept the OEM service, and also we can customize brake drums based on your drawing or sample.
Other OE No.
Other OE No. As Follows | |
Truck Model | Other OE No. |
5000737342 Brake Drum | 44T326571 |
5000737342 Brake Drum | M230 |
