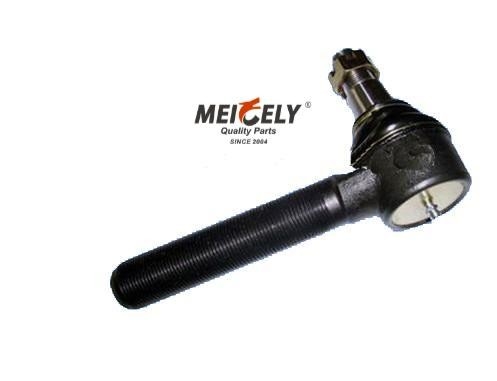

International Truck Steering Tie Rod End ES2091R Heavy Duty 7.50 Inch

I'm Online Chat Now

International Truck Steering Tie Rod End ES2091R Heavy Duty 7.50 Inch

International Truck Steering Tie Rod End  ES2091R Heavy Duty 7.50 Inch
International Truck Steering Tie Rod End  ES2091R Heavy Duty 7.50 Inch

Large Image :  International Truck Steering Tie Rod End ES2091R Heavy Duty 7.50 Inch

Product Details:
Place of Origin: China
Brand Name: Meicely
Certification: ISO9001
Model Number: ES2091R
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Carton Packing
Delivery Time: 10-45 days
Payment Terms: T/T, L/C
Supply Ability: 10000pcs/month

International Truck Steering Tie Rod End ES2091R Heavy Duty 7.50 Inch

Description
OE No.: ES2091R Material: Body 7075 Ball Pin Cr40
Category: Tie Rod End Rod Outer Diameter: 1-1/4 Inch
Center To End: 7.50 Inch Height Of Taper: 2.609 Inch
Stud Thread: 7/8 Inch-14 Thread Pitch & Direction: 12 (LH)
Taper Length: 1.406 Inch Warranty: 6 Months & 30000KM
High Light:

7.50 inch Steering Tie Rod End

,

Steering Tie Rod End

,

ES2091R



ES2091R Heavy Duty International Truck Steering Tie Rod End



Specification



Specification As Follows
OE No. ES2091R
Category Tie Rod End
Material Body 7075 Ball Pin Cr40
Rod Outer Diameter 1-1/4 inch
Center To End 7.50 inch
Height Of Taper 2.609 inch
Stud Thread 7/8 inch-14
Thread Pitch & Direction 12 (LH)
Taper Length 1.406 inch
Warranty 6 Months & 30000KM





Description



The tie rods feature several differences from the OE. One of the more obvious differences is the overall design itself. Whereas many OE tie rods are two-piece assemblies, our tie rods are forged one-piece units. This one-piece design reduces the chance of early wear, increasing the durability of the part as a whole. To protect your tie rod, we uses a neoprene-sealed rubber dust boot. This dust boot is resistant to both extreme temperatures and abrasion. The design for this rubber boot includes a small valve to allow for the flushing of old grease and contaminants. In addition to all these other features, we craft their tie rod end using hardened full-ball metal studs. These hardened studs can stand up to much more than the OE, making the tie rod that much more dependable.



1. Stud Center to End: 7.50”

2. Cross number: S-5988,310-284,310-434,E4629 442354C92,486355C91,506684C91,
581063C91,590584C91,FTR 2091R,FTR 2202R,FTR 2204R,FTR 3034R.
FTR 3302R,10-QH-248P5,10-QH-311,A3144F448,A3144V438,A3144Z546,R230073 Curbside,ES2204R, ES3034R.

ES2091R Steering Tie Rod End For Inter-national Truck





Other OE No.



Other OE No. As Follows
Truck Model Other OE No.
ES2091R Tie Rod End S-5988
ES2091R Tie Rod End 310-284
ES2091R Tie Rod End 310-434
ES2091R Tie Rod End E4629
ES2091R Tie Rod End 442354C92
ES2091R Tie Rod End 506684C91
ES2091R Tie Rod End 581063C91
ES2091R Tie Rod End 590584C91
ES2091R Tie Rod End E4HZ3A131A
