Product Details:
|
| OE No.: | 483GB471M | Category: | Fuel Filter |
|---|---|---|---|
| Material: | Cellulose | Reference No.: | P554471 |
| Outer Diameter: | 4.23 Inch (107.5 Mm) | Length: | 10.31 Inch (262 Mm) |
| Gasket OD: | 3.90 Inch (99 Mm) | Gasket ID: | 3.56 Inch (90.3 Mm) |
| Thread Size: | M30 X 1.5 | Efficiency Test Standard: | SAE J1858 |
| High Light: | SAE J1858 Secondary Diesel Fuel Filter,P554471,483GB471M |
||

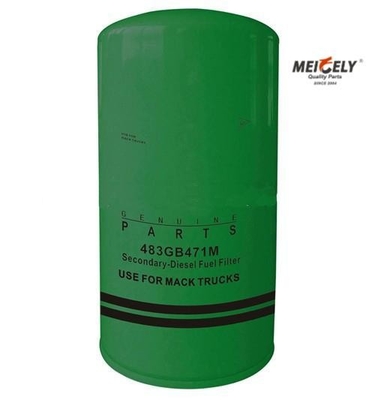

Secondary Diesel Fuel Filter 483GB471M Reference Number P554471
Specification
| Specification As Follows | |
| OE No. | 483GB471M |
| Category | Fuel Filter |
| Material | Celluose |
| Reference No. | P554471 |
| Outer Diameter | 4.23 inch (107.5 mm) |
| Length | 10.31 inch (262 mm) |
| Gasket OD | 3.90 inch (99 mm) |
| Gasket ID | 3.56 inch (90.3 mm) |
| Thread Size | M30 x 1.5 |
| Efficiency Test Standard | SAE J1858 |
Description
1. For removal of dust and other particles
2. Adopt high performance 100% wood pulp filter paper
3. 100% mechanical rubber
4. Filtration efficiency over 99%
5. High standards from first grade materials specific to its application for European truck
|
Outer Diameter
|
107.5 mm (4.23 inch)
|
|
Thread Size
|
M30 x 1.5
|
|
Length
|
262 mm (10.31 inch)
|
|
Gasket OD
|
99 mm (3.90 inch)
|
|
Gasket ID
|
90.3 mm (3.56 inch)
|
|
Efficiency 99%
|
9 micron
|
|
Efficiency Test Std
|
SAE J1858
|
|
Collapse Burst
|
6.9 bar (100 psi)
|
|
Type
|
Secondary
|
|
Style
|
Spin-On
|
|
Media Type
|
Cellulose
|
|
Primary Application
|
483GB471M
|
Other OE No.
| Other OE No. As Follows | |
| Truck Model | Other OE No. |
| 483GB471M Fuel Filter | P554471 |
