Product Details:
|
| OE No.: | 3600A | Category: | Brake Drum |
|---|---|---|---|
| Material: | Cast Iron | Model No.: | BB57 |
| Size: | 16.5*7 Inch | Weight: | 48kg |
| Certification: | TS16949 | Warranty: | 6 Months |
| High Light: | 3600A Heavy Duty Truck Brake Drums,Heavy Duty Truck Brake Drums,800306613 |
||

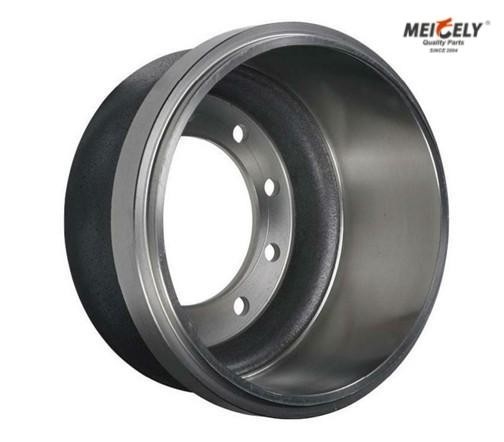

3600A Truck Brake Drum Applicable To Volve 800 306613 66864B, 3922X
Specification
| Specification As Follows | |
| OE No. | 3600A |
| Category | Brake Drum |
| Material | Cast Iron |
| Weight | 48kg |
| Size | 16.5*7 inch |
| Certification | TS16949 |
| Model No. | BB57 |
| Warranty | 6 Months |
A.Brake Surface Diameter: 16.50
B.Brake Surface Width: 7.60
C.Bolt Circle Diameter: 11.25
D.Bolt Hole Size: 1.00
E.Pilot Diameter: 8.78
F.Overall Depth: 10.56
G.Mounting Flange Thickness: 0.53
Aftermarket Replacement:
Axle Rating/GAWR:
Brake Size: 16.50 x 7.00
Captive To: n/a
Drum Mount: Outboard
Finished Weight: 112.00
Limitations:
Maximum Wear Diameter: 16.62
Measurement: Imperial
Number of Bolt Holes: 10
OE Service Replacement: n/a
Wheel Type: Disc
Special Information: For severe duty use 3576
Description
F 3600AX BRAKE DRUM BALANCED FOR BRAKE SIZE 16.5” X 7”- 3600A, 66864B, 3922X
Other OE No.
| Other OE No. As Follows | |
| Truck Model | Other OE No. |
| 3600A Brake Drum | 66864B |
| 3600A Brake Drum | 3922X |
| 3600A Brake Drum | 800 306613 |
