Product Details:
|
| OE No.: | SAE 100R1 | Category: | Hydraulic Hose |
|---|---|---|---|
| Color: | Black As Picture | Working Temperature: | -40 °C To +100 °C |
| Working Pressure: | 160 Bar | Diameter: | 1/2 Inch |
| Material: | Oil Resistant Synthetic Rubber | Warranty: | 6 Months |
#SAE 100 R1 Steel Wire Reinforced Hydraulic Hose with Long Service Life
Specification
| Specification As Follows | |
| OE No. | SAE 100R1 |
| Catetory | Hydraulic Hose |
| Material | Oil Resistant Synthetic Rubber |
| Color | Black As Picture |
| Work Temperature | -40 °C to +100 °C |
| Work Pressure | 160 Bar |
| Diameter | 1/2 Inch |
| Warranty | 6 Months |
| Hose code | Size | Dash size | ID | WD | OD | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| A | AT | |||||||||
| mm | inch | min | max | min | max | min | max | max | ||
| SAE100R1-01 | 5 | 3/16 | -3 | 4.6 | 5.4 | 8.9 | 10.1 | 11.9 | 13.5 | 12.5 |
| SAE100R1-02 | 6.3 | 1/4 | -4 | 6.2 | 7.0 | 10.6 | 11.7 | 15.1 | 16.7 | 14.1 |
| SAE100R1-03 | 8 | 5/16 | -5 | 7.7 | 8.5 | 12.1 | 13.3 | 16.7 | 18.3 | 15.7 |
| SAE100R1-04 | 10 | 3/8 | -6 | 9.3 | 10.1 | 14.5 | 15.7 | 19.0 | 20.6 | 18.1 |
| SAE100R1-05 | 12.5 | 1/2 | -8 | 12.3 | 13.5 | 17.5 | 19.0 | 22.2 | 23.8 | 21.5 |
| SAE100R1-06 | 16 | 5/8 | -10 | 15.5 | 16.7 | 20.6 | 22.2 | 25.4 | 27.0 | 24.7 |
| SAE100R1-07 | 19 | 3/4 | -12 | 18.6 | 19.8 | 24.6 | 26.2 | 29.4 | 31.0 | 28.6 |
| SAE100R1-08 | 25 | 1 | -16 | 25.0 | 26.4 | 32.5 | 34.1 | 36.9 | 39.3 | 36.6 |
| SAE100R1-09 | 31.5 | 1-1/4 | -20 | 31.4 | 33.0 | 39.3 | 41.7 | 44.4 | 47.6 | 44.8 |
| SAE100R1-10 | 38 | 1-1/2 | -24 | 37.7 | 39.3 | 45.6 | 48.0 | 50.8 | 54.0 | 52.0 |
| SAE100R1-11 | 51 | 2 | -32 | 50.4 | 52.0 | 58.7 | 61.9 | 65.1 | 68.3 | 65.9 |
| Hose code | Working pressure | Proof pressure | Min burst pressure | Min bending radius | Weight | |||
|---|---|---|---|---|---|---|---|---|
| MPa | psi | MPa | psi | MPa | psi | mm | kg/m | |
| SAE100R1-01 | 21 | 3045 | 42 | 6090 | 84 | 12810 | 90 | 0.20 |
| SAE100R1-02 | 19.2 | 2780 | 38.5 | 5580 | 77 | 11165 | 100 | 0.25 |
| SAE100R1-03 | 17.5 | 2540 | 35 | 5075 | 70 | 10150 | 115 | 0.31 |
| SAE100R1-04 | 15.7 | 2280 | 31.5 | 4570 | 63 | 9135 | 125 | 0.36 |
| SAE100R1-05 | 14 | 2030 | 28 | 4060 | 56 | 8120 | 180 | 0.45 |
| SAE100R1-06 | 10.5 | 1520 | 21 | 3045 | 42 | 6090 | 205 | 0.52 |
| SAE100R1-07 | 8.7 | 1260 | 17.5 | 2540 | 35 | 5075 | 240 | 0.65 |
| SAE100R1-08 | 7 | 1015 | 14 | 2030 | 28 | 4060 | 300 | 0.91 |
| SAE100R1-09 | 4.3 | 620 | 8.7 | 1260 | 17.5 | 2540 | 420 | 1.30 |
| SAE100R1-10 | 3.5 | 510 | 7 | 1015 | 14 | 2030 | 500 | 1.70 |
| SAE100R1-11 | 2.6 | 380 | 5.2 | 750 | 10.5 | 1520 | 630 | 2.00 |
Description
SAE 100 R1 steel wire reinforced hydraulic hose is suitable for hydraulic lines and usual industrial systems. It can bear higher working pressure than other rubber hoses thanks to its high tensile braided steel wire reinforcement. It is composed of three parts: tube, reinforcement and cover. The tube is made from oil resistant synthetic rubber, making the hose have excellent performance in delivering oils. The reinforcement is made from one layer of high tensile braided steel wire, making the hose have outstanding high pressure resistance. The cover is made from high quality synthetic rubber, making the hose resistant to abrasion, corrosion, weather, ozone, aging, sunlight and cut. Therefore, it has longer service life.

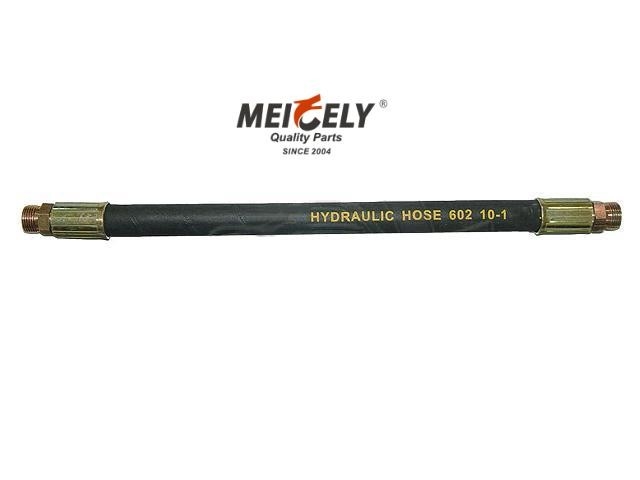

Details of SAE 100 R1 steel wire reinforced hydraulic hose:
Other OE No.
No more other OE No. for reference.
