Product Details:
|
| OE No.: | 47697 | Material: | Rubber |
|---|---|---|---|
| Color: | Black Or Customized As Requested | Size: | Customized As Requested |
| High Light: | 90Shore Wheel Hub Oil Seal,CR47697,370003A |
||

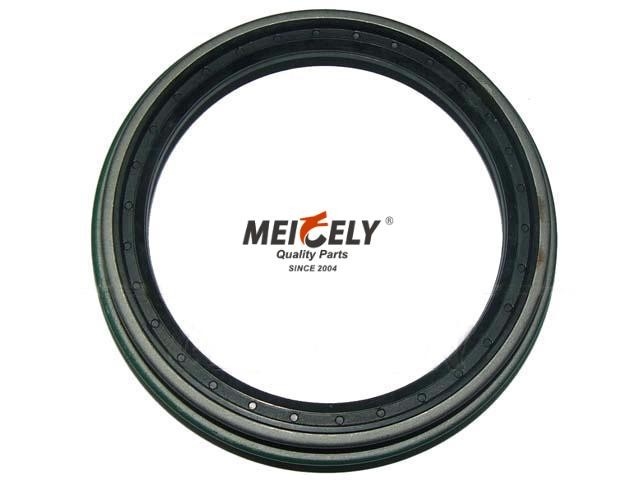

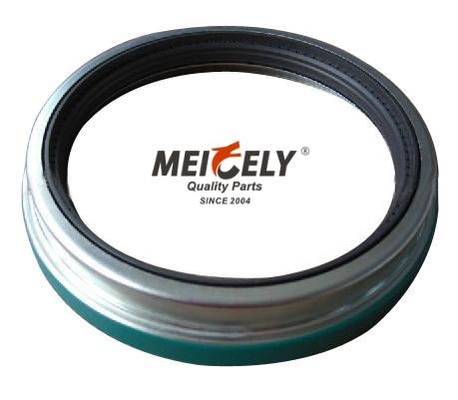

OE No. CR47697 370003A Truck Wheel Hub Oil Seal
Specification
| Material: | NBR/FKM/HNBR/PU/fabric rubber/Silicone/...etc |
| Type: | TC / SC / TB / SB / VC / TA / SA / VB / VA and so on |
| Size Range: | ID from 5mm to 1M |
| Color: | Black, Brown, Blue / Customized |
| Feature: | Durable, Water Resistant, Oil Resistant |
| Packing: | By Roll/ Plastic Bag + Carton Box / Customized |
| HS Code | 84842000 |
| Temperature: | -40°C / +200°C Depending On Material |
| Pressure: | Up to 0.05 MPa |
| Speed: | Up to 25 m/s |
| Medias | mineral oils, water, lubricating grease |
| Spring: | Carton Steel/stainless steel |
| Hardness: | 30-90 Shore |
Description
Oil seal is often called grease, fluid, dirt or lip seals. Oil seal is an integral part in any rotating and moving part assembly. They close spaces between stationary and moving components in mechanical equipment. In most applications, the seal is either partially or temporarily immersed or is simply exposed to splashing lubricant, particularly in engines, transmissions, gearboxes or axles. They are vital components of almost every type of machine and vehicle in operation. An oil seal normally consists of three basic components: The Sealing Element (the nitrile rubber part), the Metal Case, and the Spring. It is a widely used sealing component. The function of a seal is to prevent the leakage of medium along the moving parts.
Other OE No.
| Part Name | SIZE " | OEM | ||
| National Oil Seal | 3.5 | 4.842 | 0.925 | 370001A |
| National Oil Seal | 3.5 | 5 | 1 | 370002A |
| National Oil Seal | 4.765 | 6.311 | 1.078 | 370003A |
| National Oil Seal | 4.812 | 6.5 | 0.865 | 370004A |
| National Oil Seal | 4.765 | 6.251 | 0.605 | 370005A |
| National Oil Seal | 4.765 | 6.999 | 1.25 | 370006A |
| National Oil Seal | 4.875 | 6.373 | 0.921 | 370007A |
| National Oil Seal | 3.937 | 5.372 | 1.015 | 370008A |
| National Oil Seal | 3.937 | 5.501 | 0.937 | 370009A |
| National Oil Seal | 2.875 | 4.125 | 0.842 | 370010A |
| National Oil Seal | 3.625 | 5 | 0.875 | 370011A |
| National Oil Seal | 3.625 | 4.81 | 0.921 | 370012A |
| National Oil Seal | 3.312 | 5 | 0.937 | 370013A |
| National Oil Seal | 3.125 | 4.5 | 0.605 | 370014A |
| National Oil Seal | 4 | 5.375 | 1 | 370015A |
| National Oil Seal | 3.25 | 4.5 | 0.605 | 370018A |
| National Oil Seal | 4.375 | 6.251 | 0.605 | 370019A |
| National Oil Seal | 4.5 | 6 | 0.984 | 370020A |
| National Oil Seal | 4.5 | 6.251 | 0.61 | 370021A |
| National Oil Seal | 4.5 | 5.75 | 0.96 | 370022A |
| National Oil Seal | 3.875 | 5.69 | 0.875 | 370023A |
| National Oil Seal | 3.875 | 5.501 | 0.875 | 370024A |
| National Oil Seal | 4.625 | 5.999 | 0.84 | 370025A |
| National Oil Seal | 4.635 | 6.007 | 0.937 | 370026A |
| National Oil Seal | 4.812 | 6.311 | 1.062 | 370027A |
| National Oil Seal | 5 | 6.25 | 1.375 | 370028A |
| National Oil Seal | 3.187 | 5 | 0.765 | 370029A |
| National Oil Seal | 4.265 | 6.064 | 0.605 | 370030A |
| National Oil Seal | 4.25 | 6.25 | 1.188 | 370031A |
| National Oil Seal | 3.875 | 5.126 | 0.605 | 370033A |
| National Oil Seal | 4.375 | 6.311 | 1.09 | 370034A |
| National Oil Seal | 4 | 5.757 | 0.93 | 370036A |
| National Oil Seal | 4.375 | 5.757 | 1 | 370037A |
| National Oil Seal | 5 | 7.437 | 0.605 | 370038A |
| National Oil Seal | 5.5 | 7.125 | 1.187 | 370043A |
| National Oil Seal | 3.125 | 4.625 | 0.605 | 370046A |
| National Oil Seal | 3.437 | 4.755 | 0.605 | 370047A |
| National Oil Seal | 4.375 | 5.905 | 1 | 370048A |
| National Oil Seal | 4.625 | 6.622 | 1.093 | 370051A |
| National Oil Seal | 2.875 | 4.175 | 0.822 | 370054A |
| National Oil Seal | 4.875 | 6.437 | 0.921 | 370057A |
| National Oil Seal | 5 | 6.25 | 0.605 | 370063A |
| National Oil Seal | 5.625 | 7.186 | 0.906 | 370064A |
| National Oil Seal | 4.25 | 6.008 | 1 | 370065A |
| National Oil Seal | 4 | 5.626 | 0.605 | 370066A |
| National Oil Seal | 5.25 | 7.375 | 1 | 370069A |
| National Oil Seal | 4.5 | 6.622 | 1.093 | 370078A |
| National Oil Seal | 4.5 | 6.31 | 1.175 | 370086A |
| National Oil Seal | 4.125 | 5.375 | 0.605 | 370094A |
| National Oil Seal | 4.166 | 5.5 | 0.605 | 370106A |
| National Oil Seal | 4.25 | 6.035 | 0.915 | 370107A |
| National Oil Seal | 4.875 | 6.622 | 1 | 370109A |
| National Oil Seal | 5.64 | 7.501 | 0.605 | 370119A |
| National Oil Seal | 5.5 | 7.25 | 1.187 | 370120A |
| National Oil Seal | 4.875 | 6.5 | 1 | 370121A |
| National Oil Seal | 4.5 | 5.374 | 0.984 | 370124A |
| National Oil Seal | 4.5 | 5.876 | 0.984 | 370131A |
| National Oil Seal | 3.5 | 4.543 | 0.788 | 370132A |
| National Oil Seal | 3.125 | 4.174 | 0.5 | 370145A |
| National Oil Seal | 2.875 | 3.875 | 0.5 | 370150A |
| National Oil Seal | 3.875 | 5.376 | 0.985 | 370165A |
| National Oil Seal | 5 | 6.622 | 1.093 | 370166A |
| National Oil Seal | 3.5 | 4.751 | 0.605 | 370169A |
| National Oil Seal | 4.765 | 6.25 | 1.05 | 370173A |
| National Oil Seal | 7.25 | 8.75 | 0.605 | 370175A |
| National Oil Seal | 4.5 | 5.5 | 0.675 | 370178A |
| National Oil Seal | 3.5 | 4.45 | 0.843 | 370179A |
| National Oil Seal | 4.765 | 5.999 | 1.031 | 370181A |
| National Oil Seal | 4.375 | 5.905 | 1 | 370182A |
| National Oil Seal | 3.312 | 4.501 | 0.605 | 370191A |
| National Oil Seal | 4.5 | 6.441 | 0.937 | 370192A |
| National Oil Seal | 4.875 | 6.001 | 0.625 | 370195A |
| National Oil Seal | 4.04 | 5.122 | 0.945 | 370198A |
| National Oil Seal | 2.948 | 4.725 | 0.526 | 370211A |
| National Oil Seal | 4.625 | 5.999 | 0.89 | 370216A |
| National Oil Seal | 2.25 | 3.372 | 0.475 | 370219A |
| National Oil Seal | 4.375 | 5.757 | 0.6 | 370338A |
| National Oil Seal | 4 | 5.757 | 0.6 | 370349A |
| National Oil Seal | 2.75 | 3.779 | 0.767 | 370352A |
| National Oil Seal | 4.25 | 6.048 | 0.68 | 376590A |
